Enabling FreeD on Mars and adding Mars to Aximmetry

FreeD is an industry-standard protocol used by cameras to directly send tracking data—such as transform, rotation, focus, and zoom—to virtual production systems. It allows production systems to incorporate realistic virtual studio sets into video productions without the need for additional hardware.

Here's how to enable FreeD on Mars and add Mars to Aximmetry:

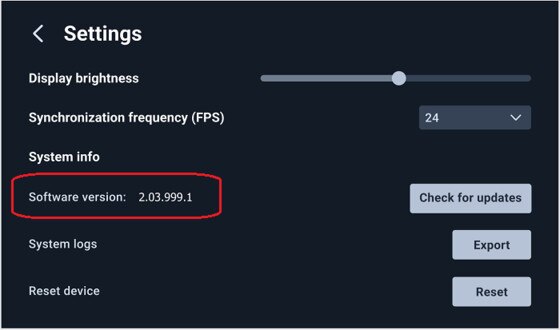

On the Mars dashboard, tap Settings and check your firmware version. Make sure you have Mars firmware 2.03.999.1 or later installed.

For details on how to update the firmware, see Manually updating the Mars firmware.

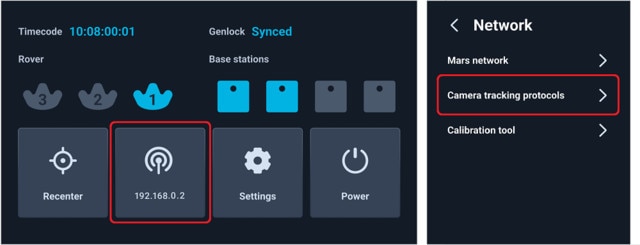

On the Mars dashboard, tap Network (or tap the Mars IP when the network is active), and then tap Camera tracking protocols.

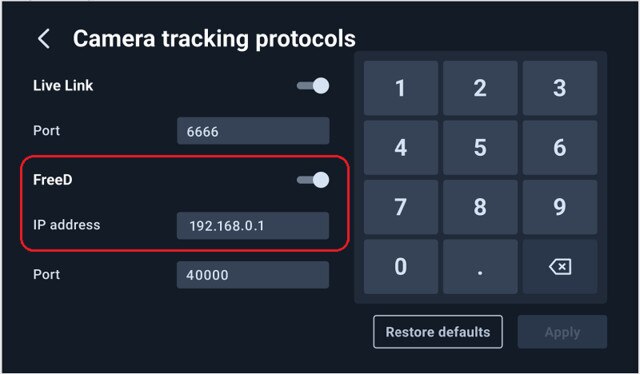

Turn on FreeD and enter your computer's IP address.
On your computer, launch Aximmetry. The Startup Configuration window will be displayed.

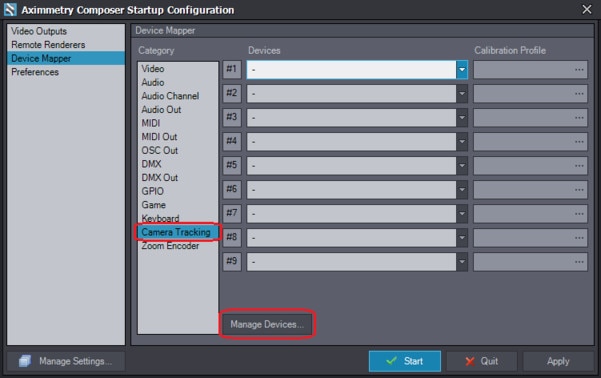

Click Device Mapper in the left pane.
Under Category, select Camera Tracking, and then click Manage Devices.

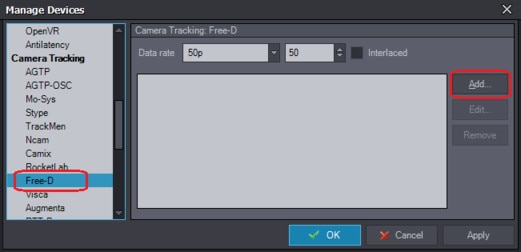

In the Manage Devices dialog box, select Free-D under Camera Tracking, and then click Add.

The Add Device dialog box will be displayed.

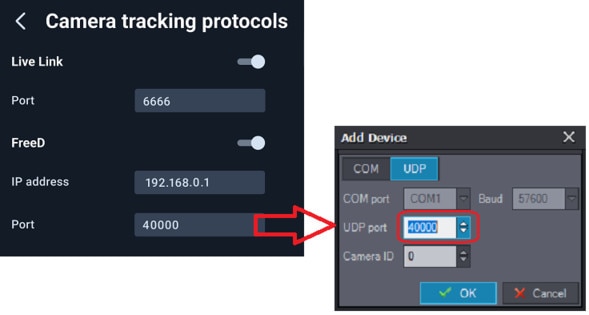

In the UDP port field, enter the port number that appears under FreeD on the Camera tracking protocols screen on the Mars dashboard.
In the Camera ID field, select 1 to associate it with Rover 1's Ethernet port on Mars, and then click OK.

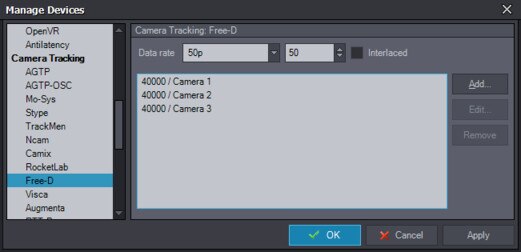

Repeat steps 7 to 9 to add Rover 2 and Rover 3. In the Camera ID field, select 2 and 3 respectively.
