Adding Mars as an endpoint in Unreal Engine
Before starting camera calibration, you'll need to add
Mars as an endpoint in
Unreal™ Engine.

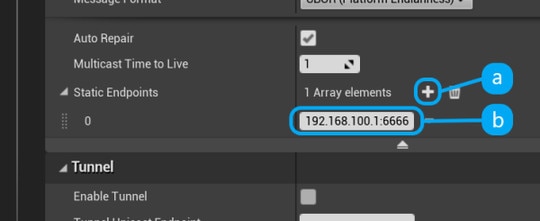

- Go to Edit > Project Settings > Plugins > UDP Messaging > Static Endpoints, and then click the + button.
-
Enter the
Mars IP address and port number (in this example,
"6666").

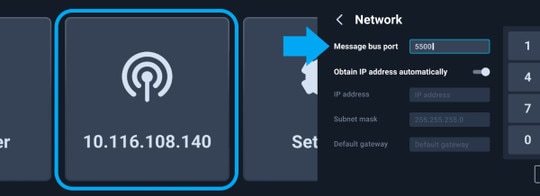

Tip: You can find the Mars IP on the Mars dashboard and the port number in the network settings. Just tap the network button to open the network settings.
-

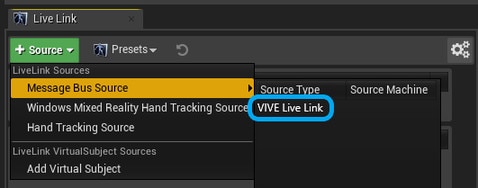

Click
+ Source, go to
Message Bus Source under
Live Link Sources, and then click
VIVE Live Link to open the Live Link plug-in.
