Why can't I see the incoming video feed in the Camera Calibration Tool?
Depending on how your video capture device is configured, the
Camera Calibration Tool might not display the incoming video feed.
If the Camera Calibration Tool doesn't display the incoming video feed after you select a video source, try reconfiguring your video capture device. For example, if you're using a Blackmagic DeckLink 8K Pro, you can resolve this issue by configuring the connector mapping as follows:
- In the Blackmagic Desktop Video Utility, select your device, and then click the settings icon
.

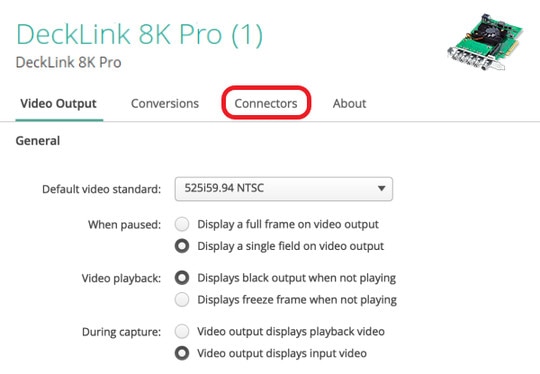

- Click the
Connectors tab.
- Under
Connector Mapping, select one of the following for
Connector:
- SDI 1 & 2 In, SDI 3 & 4 Out
- SDI 1 In, SDI 2 Out
